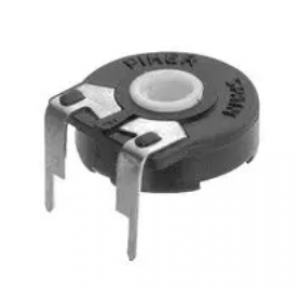

PT15NV02-103A2020-S TRIMMER
-
Product Code:
SG-E-PT15NV02-103A2020-S Availability:
Pre-Order
-
Price:
S$ 0.70
Qty
This product has a minimum quantity of 200
PT15NV02-103A2020-S TRIMMER
TRIMMER TYPE SINGLE TURN
ELEMENT MATERIAL CARBON
ADJUSTMENT TYPE TOP ADJUST
TRACK RESISTANCE 10KOHM
POTENTIOMETER MOUNTING THROUGH HOLE
NO. OF TURNS 1TURNS
PRODUCT RANGE PT-15 SERIES
POWER RATING 250MW
RESISTANCE TOLERANCE ± 20%
TEMPERATURE COEFFICIENT ± 300PPM/°C
TRIMMER SHAPE / SIZE 15 MM ROUND
PRODUCT LENGTH 15MM
PRODUCT HEIGHT 7MM
OPERATING TEMPERATURE MIN -25°C
OPERATING TEMPERATURE MAX 70°C
Tags: PT15NV02-103A2020-S TRIMMER
