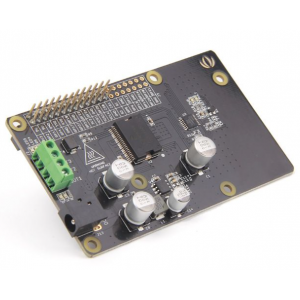

RASPBERRY PI MOTOR BOARD V1.0
RASPBERRY PI MOTOR BOARD V1.0
Description
Tip
This product is fully compatible with Raspberry Pi 4 (1GB, 2GB,4GB) and hopes you enjoy hacking with Pi 4
and all of other Pi 4 accessories.
Raspberry Pi Motor Driver Board v1.0 is based on the Freescale MC33932 dual H-Bridge Power IC, which can
control inductive loads with currents up to 5.0A peak per single bridge. It lets you drive two DC motors with
your Raspberry Pi B/B+/A+ and Pi 2 Model B, controlling the speed and direction of each one independently.
Raspberry Pi Motor Driver Board v1.0 support a very wide range of input voltage from 6V~28V. otherwise ,the
on board DC/DC converter support a very wide range of input voltage, and can provide a 5V power supply for
the Raspberry Pi with 1000mA maximum current. So, you just need one power supply to drive the motors and
power up the Raspberry Pi.
Features:
Operating Voltage: 6V ~ 28V
DC/DC output: 5V 1000mA @ "5V" pin
Output Current(For Each Channel ): 2A (continuous operation) / 5A(peak)
Output Duty Range: 0%~100%
Output short-circuit protection (short to VPWR or GND)
Over-current limiting (regulation) via internal constant-off-time PWM
Temperature dependent current limit threshold reduction
Raspberry Pi compatible
Specification:
Compatible: Raspberry Pi ; Other main board via jumpers;
Power interface: DC Jack;
Dimensions: 91.20 * 56.15mm;
Operating Voltage: 6V ~ 28V
Tags: RASPBERRY PI MOTOR BOARD V1.0
