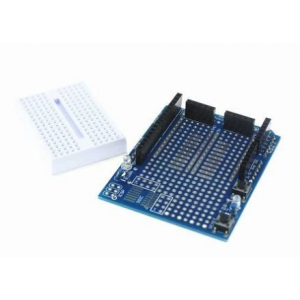

ARDUINO UNO R3 PROTO SHIELD
-
Product Code:
SG-UNO-PTS Availability:
10
-
Price:
S$ 10.00
Qty
ARDUINO UNO R3 PROTO SHIELD
SYB-170 Mini Breadboard Based for arduino
Compatible with UNO R3 UNO Proto Shield prototype expansion board with SYB-170 mini breadboard
Used in conjunction with the Duemilanove ProtoShield prototype expansion board, the circuit is used to build a prototype
The ProtoShield Prototyping Board comes with two LEDs and two pushbutton circuits that are ready to use, with all pins
and power supplies present
Duemilanove used in conjunction with ProtoShieldprototype extension boards, used to build the circuit prototypes
directly on the board welding components, mini bread plate above can also be connected to the circuit. Sided adhesive
connection between the bread board and the board, bread board and the circuit board is sold separate.
Features:
Small soldering area.
All pins are brought to the top level.
5V, GND, and Raw pins are exposed as well.
SOIC place for IC.
The mini breadboard has 170 tie points.
Prototype Size:7cm x 5.5cm x 2cm .
Mini breadboard size: 4.4 * 3.4 * 1cm .
