SOUND LEVEL MEASURING INSTRUMENT

SOUND LEVEL MEASURING INSTRUMENT

FREQUENCY EVALUATION ACCORDING TO CHARACTERISTIC CURVES A AND C
EASY TO ADJUST
MAXIMUM AND MINIMUM STORE
SWITCHABLE TIME EVALUATION FAST/SLOW

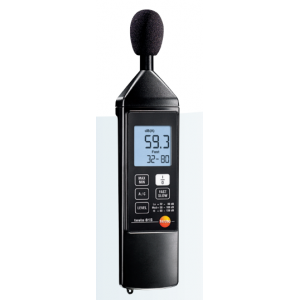

THE TESTO 815 IS THE IDEAL INSTRUMENT FOR THE EVALUATION OF SOUND LEVEL IN EVERYDAY WORK. THE INSTRUMENT CAN BE USED FOR MONITORING MEASUREMENTS IN THE AREAS OF AIR CONDITIONING OR HEATING, ON COMBUSTION PLANTS OR AT WORKPLACES, HOWEVER MACHINE OR DISCOTHEQUE NOISE CAN ALSO BE EVALUATED QUICKLY AND PRECISELY. USING THE FAST/SLOW BUTTON, THE MEASUREMENT TIME CAN BE SET FROM 1 S TO 125 MS, IN ORDER TO BETTER EVALUATE THE NOISE SOURCE. THE FREQUENCY ANALYSIS CAN ALSO BE SWITCHED FROM CHARACTERISTIC CURVE A TO C. THE CHARACTERISTIC CURVE A CORRESPONDS TO THE SOUND PRESSURE PERCEPTION OF THE HUMAN EAR, WHEREAS CHARACTERISTIC CURVE C CAN ALSO EVALUATE THE LOW-FREQUENCY COMPONENTS OF A SOUND. WITH THE HELP OF THE OPTIONAL CALIBRATOR, THE MEASURING
INSTRUMENT CAN BE RECALIBRATED DIRECTLY ON SITE WITH THE SCREWDRIVER PROVIDED. THE WIND PROTECTION CAP INCLUDED IN DELIVERY ENSURES CORRECT MEASUREMENT RESULTS WHEN MEASURING OUTDOORS, AND IF REQUIRED CAN PROTECT THE MICROPHONE FROM DIRT AND DUST.

TECHNICAL DATA
MEASURING RANGE +32 TO +130 DB
FREQUENCY RANGE 31.5 HZ TO 8 KHZ
ACCURACY ±1 DIGIT ±1.0 DB
RESOLUTION 0.1 DB
OPERATING TEMPERATURE 0 TO +40 °C
STORAGE TEMPERATURE -10 TO +60 °C
BATTERY TYPE 9V BLOCK BATTERY
BATTERY LIFE 70 H
WEIGHT 195 G
DIMENSIONS 255 X 55 X 43 MM
WARRANTY 2 YEARS
SECTION MEAS. RANGES: 30 TO 80 DB; 50 TO 100 DB; 80 TO 130 DB
TIME WEIGHTING: FAST 125 MS SETTING / SLOW 1 S SETTING
PRESSURE DEPENDENCY: -0.0016 DB/HPA

TECHNICAL DATA SOUND LEVEL CALIBRATOR
BATTERY TYPE 9V BLOCK BATTERY
BATTERY LIFE 40 H
WARRANTY 2 YEARS
ACCURACY ±0.5 DB IN ACCORDANCE WITH CLASS 2 TO IEC 60942
SOUND PRESSURE LEVEL: 94 DB/104 DB, SWITCHABLE
FREQUENCY: 1000 HZ
ALSO SUITABLE FOR ½ AND 1 INCH MICROPHONES BY OTHER MANUFACTURERS
